关于函数MULTIPAGE_SetTabHeight和MULTIPAGE_SetTabWidth的使用

eric2013 · 发表于 2017-6-20 01:51:44

客户反映这两个函数使用没有效果，实际是有效果的，注意不要设置错位置了：

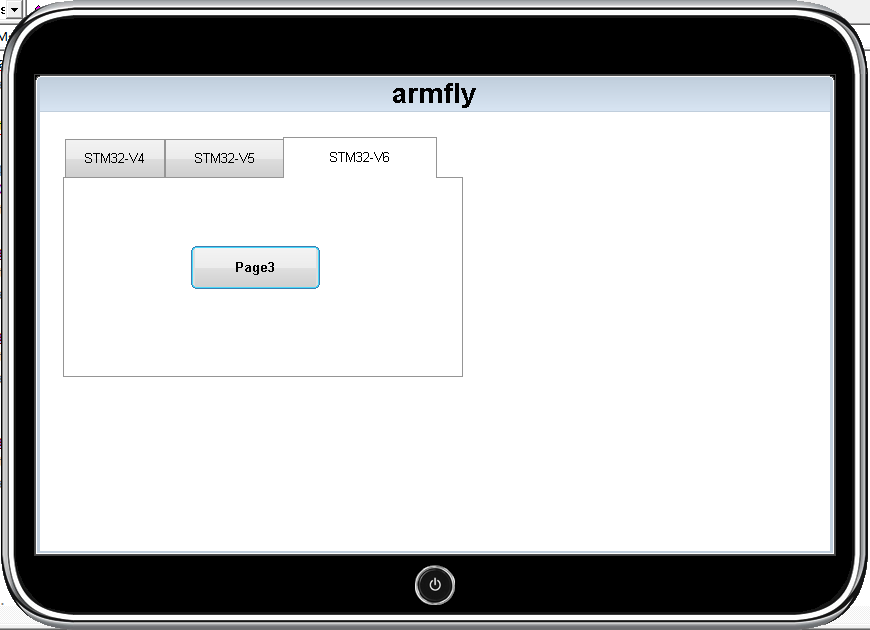

效果显现如下：

======================================================
可以在模拟器上面运行的完成测试代码，直接复制到模拟器上面就可以跑：

#include "DIALOG.h"
/*
************************************************************************************************
* 添加到多页控件第一个页面窗口的对话框
************************************************************************************************
*/
/*********************************************************************
*
* Defines
*
**********************************************************************
*/
#define ID_WINDOW_01 (GUI_ID_USER + 0x10)
#define ID_BUTTON_01 (GUI_ID_USER + 0x11)
// USER START (Optionally insert additional static data)
// USER END
/*********************************************************************
*
* _aDialogCreate
*/
static const GUI_WIDGET_CREATE_INFO _aDialogCreatePage1[] = {
{ WINDOW_CreateIndirect, "Window", ID_WINDOW_01, 0, 0, 400, 200, 0, 0x0, 0 },
{ BUTTON_CreateIndirect, "Button", ID_BUTTON_01, 127, 68, 129, 43, 0, 0x0, 0 },
};
/*********************************************************************
*
* Static code
*
**********************************************************************
*/
// USER START (Optionally insert additional static code)
// USER END
/*********************************************************************
*
* _cbDialog
*/
static void _cbDialogPage1(WM_MESSAGE * pMsg) {
WM_HWIN hItem;
int NCode;
int Id;
// USER START (Optionally insert additional variables)
// USER END
switch (pMsg->MsgId) {
case WM_INIT_DIALOG:
//
// Initialization of 'Button'
//
hItem = WM_GetDialogItem(pMsg->hWin, ID_BUTTON_01);
BUTTON_SetFont(hItem, GUI_FONT_16B_ASCII);
BUTTON_SetText(hItem, "Page1");
// USER START (Optionally insert additional code for further widget initialization)
// USER END
break;
case WM_NOTIFY_PARENT:
Id = WM_GetId(pMsg->hWinSrc);
NCode = pMsg->Data.v;
switch(Id) {
case ID_BUTTON_01: // Notifications sent by 'Button'
switch(NCode) {
case WM_NOTIFICATION_CLICKED:
// USER START (Optionally insert code for reacting on notification message)
// USER END
break;
case WM_NOTIFICATION_RELEASED:
// USER START (Optionally insert code for reacting on notification message)
// USER END
break;
// USER START (Optionally insert additional code for further notification handling)
// USER END
}
break;
// USER START (Optionally insert additional code for further Ids)
// USER END
}
break;
default:
WM_DefaultProc(pMsg);
break;
}
}
/*********************************************************************
*
* CreateWindowPage1
*/
WM_HWIN CreateWindowPage1(void) {
WM_HWIN hWin;
hWin = GUI_CreateDialogBox(_aDialogCreatePage1, GUI_COUNTOF(_aDialogCreatePage1), _cbDialogPage1, WM_HBKWIN, 0, 0);
return hWin;
}
/*
************************************************************************************************
* 添加到多页控件第二个页面窗口的对话框
************************************************************************************************
*/
/*********************************************************************
*
* Defines
*
**********************************************************************
*/
#define ID_WINDOW_02 (GUI_ID_USER + 0x20)
#define ID_BUTTON_02 (GUI_ID_USER + 0x21)
// USER START (Optionally insert additional static data)
// USER END
/*********************************************************************
*
* _aDialogCreate
*/
static const GUI_WIDGET_CREATE_INFO _aDialogCreatePage2[] = {
{ WINDOW_CreateIndirect, "Window", ID_WINDOW_02, 0, 0, 400, 200, 0, 0x0, 0 },
{ BUTTON_CreateIndirect, "Button", ID_BUTTON_02, 127, 68, 129, 43, 0, 0x0, 0 },
};
/*********************************************************************
*
* Static code
*
**********************************************************************
*/
// USER START (Optionally insert additional static code)
// USER END
/*********************************************************************
*
* _cbDialog
*/
static void _cbDialogPage2(WM_MESSAGE * pMsg) {
WM_HWIN hItem;
int NCode;
int Id;
// USER START (Optionally insert additional variables)
// USER END
switch (pMsg->MsgId) {
case WM_INIT_DIALOG:
//
// Initialization of 'Button'
//
hItem = WM_GetDialogItem(pMsg->hWin, ID_BUTTON_02);
BUTTON_SetFont(hItem, GUI_FONT_16B_ASCII);
BUTTON_SetText(hItem, "Page2");
// USER START (Optionally insert additional code for further widget initialization)
// USER END
break;
case WM_NOTIFY_PARENT:
Id = WM_GetId(pMsg->hWinSrc);
NCode = pMsg->Data.v;
switch(Id) {
case ID_BUTTON_02: // Notifications sent by 'Button'
switch(NCode) {
case WM_NOTIFICATION_CLICKED:
// USER START (Optionally insert code for reacting on notification message)
// USER END
break;
case WM_NOTIFICATION_RELEASED:
// USER START (Optionally insert code for reacting on notification message)
// USER END
break;
// USER START (Optionally insert additional code for further notification handling)
// USER END
}
break;
// USER START (Optionally insert additional code for further Ids)
// USER END
}
break;
default:
WM_DefaultProc(pMsg);
break;
}
}
/*********************************************************************
*
* CreateWindowPage2
*/
WM_HWIN CreateWindowPage2(void) {
WM_HWIN hWin;
hWin = GUI_CreateDialogBox(_aDialogCreatePage2, GUI_COUNTOF(_aDialogCreatePage2), _cbDialogPage2, WM_HBKWIN, 0, 0);
return hWin;
}
/*
************************************************************************************************
* 添加到多页控件第三个页面窗口的对话框
************************************************************************************************
*/
/*********************************************************************
*
* Defines
*
**********************************************************************
*/
#define ID_WINDOW_03 (GUI_ID_USER + 0x30)
#define ID_BUTTON_03 (GUI_ID_USER + 0x31)
// USER START (Optionally insert additional static data)
// USER END
/*********************************************************************
*
* _aDialogCreate
*/
static const GUI_WIDGET_CREATE_INFO _aDialogCreatePage3[] = {
{ WINDOW_CreateIndirect, "Window", ID_WINDOW_03, 0, 0, 400, 200, 0, 0x0, 0 },
{ BUTTON_CreateIndirect, "Button", ID_BUTTON_03, 127, 68, 129, 43, 0, 0x0, 0 },
};
/*********************************************************************
*
* Static code
*
**********************************************************************
*/
// USER START (Optionally insert additional static code)
// USER END
/*********************************************************************
*
* _cbDialog
*/
static void _cbDialogPage3(WM_MESSAGE * pMsg) {
WM_HWIN hItem;
int NCode;
int Id;
// USER START (Optionally insert additional variables)
// USER END
switch (pMsg->MsgId) {
case WM_INIT_DIALOG:
//
// Initialization of 'Button'
//
hItem = WM_GetDialogItem(pMsg->hWin, ID_BUTTON_03);
BUTTON_SetFont(hItem, GUI_FONT_16B_ASCII);
BUTTON_SetText(hItem, "Page3");
// USER START (Optionally insert additional code for further widget initialization)
// USER END
break;
case WM_NOTIFY_PARENT:
Id = WM_GetId(pMsg->hWinSrc);
NCode = pMsg->Data.v;
switch(Id) {
case ID_BUTTON_03: // Notifications sent by 'Button'
switch(NCode) {
case WM_NOTIFICATION_CLICKED:
// USER START (Optionally insert code for reacting on notification message)
// USER END
break;
case WM_NOTIFICATION_RELEASED:
// USER START (Optionally insert code for reacting on notification message)
// USER END
break;
// USER START (Optionally insert additional code for further notification handling)
// USER END
}
break;
// USER START (Optionally insert additional code for further Ids)
// USER END
}
break;
default:
WM_DefaultProc(pMsg);
break;
}
}
/*********************************************************************
*
* CreateWindowPage3
*/
WM_HWIN CreateWindowPage3(void) {
WM_HWIN hWin;
hWin = GUI_CreateDialogBox(_aDialogCreatePage3, GUI_COUNTOF(_aDialogCreatePage3), _cbDialogPage3, WM_HBKWIN, 0, 0);
return hWin;
}
/*********************************************************************
*
* Defines
*
**********************************************************************
*/
#define ID_FRAMEWIN_0 (GUI_ID_USER + 0x00)
#define ID_MULTIPAGE_0 (GUI_ID_USER + 0x01)
// USER START (Optionally insert additional defines)
// USER END
/*********************************************************************
*
* Static data
*
**********************************************************************
*/
// USER START (Optionally insert additional static data)
// USER END
/*********************************************************************
*
* _aDialogCreate
*/
static const GUI_WIDGET_CREATE_INFO _aDialogCreate[] = {
{ FRAMEWIN_CreateIndirect, "Framewin", ID_FRAMEWIN_0, 0, 0, 800, 480, 0, 0x0, 0 },
{ MULTIPAGE_CreateIndirect, "Multipage", ID_MULTIPAGE_0, 23, 25, 400, 240, 0, 0x0, 0 },
// USER START (Optionally insert additional widgets)
// USER END
};
/*********************************************************************
*
* Static code
*
**********************************************************************
*/
// USER START (Optionally insert additional static code)
// USER END
/*********************************************************************
*
* _cbDialog
*/
static void _cbDialog(WM_MESSAGE * pMsg) {
WM_HWIN hItem;
WM_HWIN hWinPage;
int NCode;
int Id;
// USER START (Optionally insert additional variables)
// USER END
switch (pMsg->MsgId) {
case WM_INIT_DIALOG:
//
// Initialization of 'Framewin'
//
hItem = pMsg->hWin;
FRAMEWIN_SetFont(hItem, GUI_FONT_32B_ASCII);
FRAMEWIN_SetText(hItem, "armfly");
FRAMEWIN_SetTextAlign(hItem, GUI_TA_HCENTER | GUI_TA_VCENTER);
//
// Initialization of 'Multipage'
//
hItem = WM_GetDialogItem(pMsg->hWin, ID_MULTIPAGE_0);
MULTIPAGE_SetFont(hItem, GUI_FONT_16_ASCII);
MULTIPAGE_SetTabHeight(hItem, 40);
hWinPage = CreateWindowPage1();
MULTIPAGE_AddEmptyPage(hItem, hWinPage, "STM32-V4");
MULTIPAGE_SetTabWidth(hItem, 100, 0);
hWinPage = CreateWindowPage2();
MULTIPAGE_AddEmptyPage(hItem, hWinPage, "STM32-V5");
MULTIPAGE_SetTabWidth(hItem, 120, 1);
hWinPage = CreateWindowPage3();
MULTIPAGE_AddEmptyPage(hItem, hWinPage, "STM32-V6");
MULTIPAGE_SetTabWidth(hItem, 150, 2);
// USER START (Optionally insert additional code for further widget initialization)
// USER END
break;
case WM_NOTIFY_PARENT:
Id = WM_GetId(pMsg->hWinSrc);
NCode = pMsg->Data.v;
switch(Id) {
case ID_MULTIPAGE_0: // Notifications sent by 'Multipage'
switch(NCode) {
case WM_NOTIFICATION_CLICKED:
// USER START (Optionally insert code for reacting on notification message)
// USER END
break;
case WM_NOTIFICATION_RELEASED:
// USER START (Optionally insert code for reacting on notification message)
// USER END
break;
case WM_NOTIFICATION_MOVED_OUT:
// USER START (Optionally insert code for reacting on notification message)
// USER END
break;
case WM_NOTIFICATION_VALUE_CHANGED:
// USER START (Optionally insert code for reacting on notification message)
// USER END
break;
// USER START (Optionally insert additional code for further notification handling)
// USER END
}
break;
// USER START (Optionally insert additional code for further Ids)
// USER END
}
break;
// USER START (Optionally insert additional message handling)
// USER END
default:
WM_DefaultProc(pMsg);
break;
}
}
/*********************************************************************
*
* Public code
*
**********************************************************************
*/
/*********************************************************************
*
* CreateFramewin
*/
WM_HWIN CreateFramewin(void);
WM_HWIN CreateFramewin(void) {
WM_HWIN hWin;
hWin = GUI_CreateDialogBox(_aDialogCreate, GUI_COUNTOF(_aDialogCreate), _cbDialog, WM_HBKWIN, 0, 0);
return hWin;
}
// USER START (Optionally insert additional public code)
// USER END
/*************************** End of file ****************************/
/*********************************************************************
*
* MainTask
*/
void MainTask(void)
{
/* 初始化 */
GUI_Init();
/* 窗口自动使用存储设备 */
WM_SetCreateFlags(WM_CF_MEMDEV);
/* 创建对话框，使用GUIBulder5.32生成的对话框创建函数 */
CreateFramewin();
while(1)
{
GUI_Delay(50);
}
}

复制代码

mcza30 · 发表于 2017-6-22 10:20:40

我在板上试了，MULTIPAGE_SetTabHeight能改变高度，
MULTIPAGE_SetTabWidth不能改变宽度。

用的是emwin526，是否版本太低？

eric2013 · 发表于 2017-6-22 14:52:57

mcza30:我在板上试了，MULTIPAGE_SetTabHeight能改变高度，
MULTIPAGE_SetTabWidth不能改变宽度。

用的是emwin526，是否版本太低？ (2017-06-22 10:20)

专门测试了下，模拟器上面也是一样的，宽度不可设置的话，用显示空格代替吧

eric2013 · 发表于 2017-6-22 15:00:06

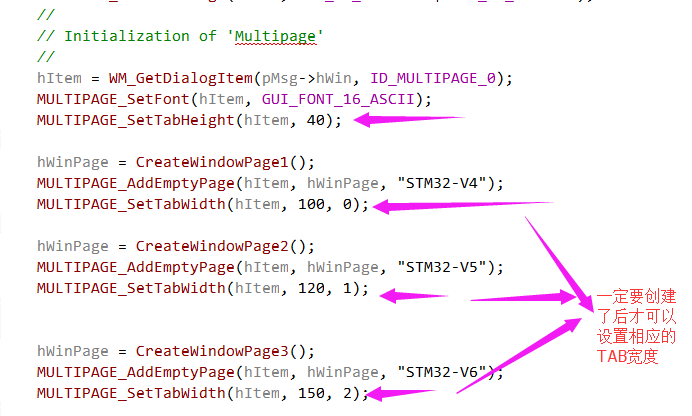

重新测试了下，解决了，注意下面问题即可：

mcza30 · 发表于 2017-6-22 17:50:57

[s:151] [s:151] [s:151]

云恋夕阳 · 发表于 2017-7-11 23:59:33

[s:151] [s:151] [s:151] [s:151]

47小白羊 · 发表于 2017-7-12 08:31:55

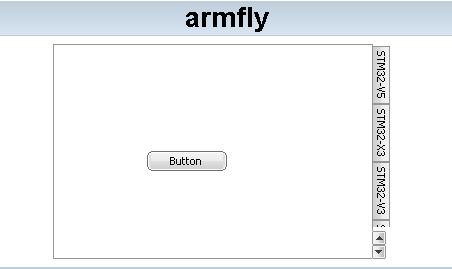

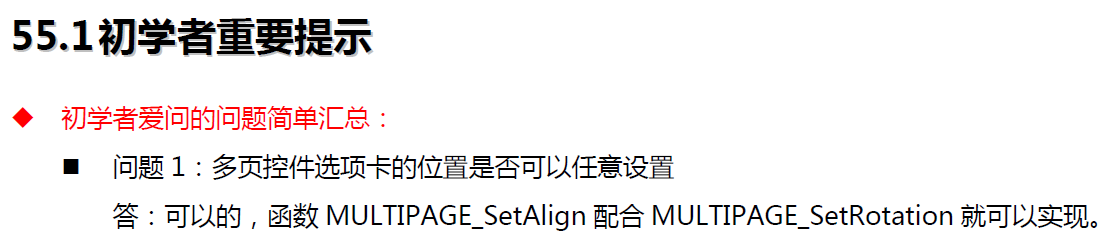

楼主！想问下，左右显示的时候只能是垂直排列吧？我想要实现字是水平排列的左边显示有没有方法呢？

eric2013 · 发表于 2017-7-12 10:20:58

47小白羊:
楼主！想问下，左右显示的时候只能是垂直排列吧？我想要实现字是水平排列的左边显示有没有方法呢？
 (2017-07-12 08:31)

应该不支持。

pengzisheng · 发表于 2017-8-11 10:42:57

eric2013:应该不支持。 (2017-07-12 10:20)

每次打开第一个页面是STM32-V6，为什么不是STM32-V4呢？

eric2013 · 发表于 2017-8-11 11:17:27

pengzisheng:每次打开第一个页面是STM32-V6，为什么不是STM32-V4呢？ (2017-08-11 10:42)

这个是默认的，显示最后一个。
