STM32L431,PWM与输入捕获的问题

勇往直前的勇士

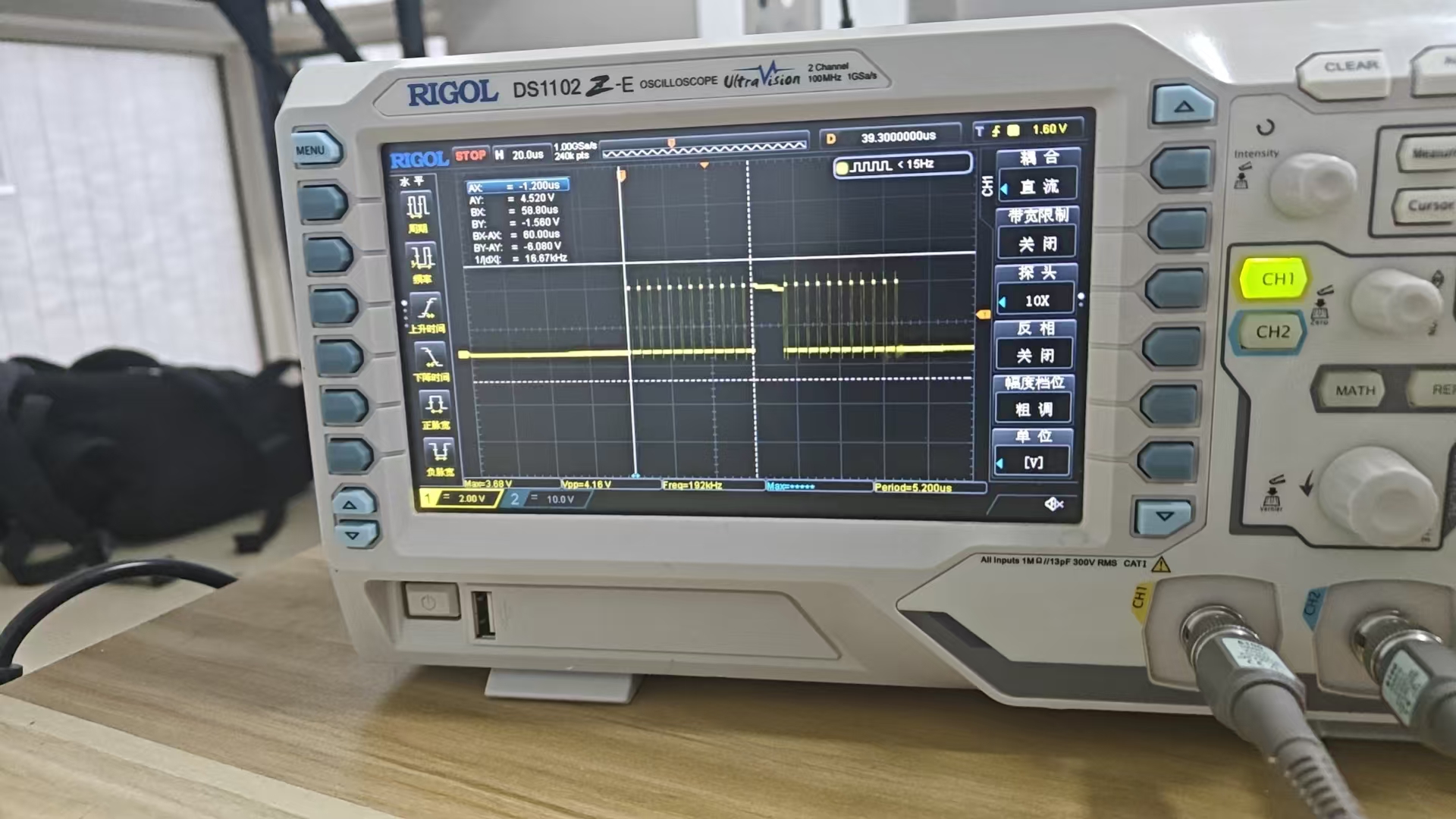

如果发送两次会出现图片问题，并且输入捕获，捕获不到频率



        Send12Pulses_SingleCh(TIM_CHANNEL_1);
        bsp_DelayUS(70);
        Send12Pulses_SingleCh(TIM_CHANNEL_1);




#include "bsp.h"

TIM_HandleTypeDef htim1;
TIM_HandleTypeDef htim2;
TIM_HandleTypeDef htim6;

/*PWM控制参数*/
// 目标脉冲数量
#define TARGET_PULSES 12
// 脉冲发送状态
uint8_t pulse_sending = 0;

/*输入捕获参数*/
__IO uint16_t IC2Value = 0;
__IO uint16_t IC1Value = 0;
__IO float DutyCycle = 0;
__IO float Frequency = 0;

/* TIM1 init function */
void MX_TIM1_Init(void)
{

  /* USER CODE BEGIN TIM1_Init 0 */

  /* USER CODE END TIM1_Init 0 */

  TIM_ClockConfigTypeDef sClockSourceConfig = {0};
  TIM_MasterConfigTypeDef sMasterConfig = {0};
  TIM_OC_InitTypeDef sConfigOC = {0};
  TIM_BreakDeadTimeConfigTypeDef sBreakDeadTimeConfig = {0};

  /* USER CODE BEGIN TIM1_Init 1 */

  /* USER CODE END TIM1_Init 1 */
  htim1.Instance = TIM1;
  htim1.Init.Prescaler = 0;
  htim1.Init.CounterMode = TIM_COUNTERMODE_UP;
  htim1.Init.Period = 399;
  htim1.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
  htim1.Init.RepetitionCounter = 0;
  htim1.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_ENABLE;
  if (HAL_TIM_Base_Init(&htim1) != HAL_OK)
  {
    Error_Handler();
  }
  sClockSourceConfig.ClockSource = TIM_CLOCKSOURCE_INTERNAL;
  if (HAL_TIM_ConfigClockSource(&htim1, &sClockSourceConfig) != HAL_OK)
  {
    Error_Handler();
  }
  if (HAL_TIM_PWM_Init(&htim1) != HAL_OK)
  {
    Error_Handler();
  }
  sMasterConfig.MasterOutputTrigger = TIM_TRGO_RESET;
  sMasterConfig.MasterOutputTrigger2 = TIM_TRGO2_RESET;
  sMasterConfig.MasterSlaveMode = TIM_MASTERSLAVEMODE_DISABLE;
  if (HAL_TIMEx_MasterConfigSynchronization(&htim1, &sMasterConfig) != HAL_OK)
  {
    Error_Handler();
  }
  sConfigOC.OCMode = TIM_OCMODE_PWM1;
  sConfigOC.Pulse = 80;
  sConfigOC.OCPolarity = TIM_OCPOLARITY_HIGH;
  sConfigOC.OCNPolarity = TIM_OCNPOLARITY_HIGH;
  sConfigOC.OCFastMode = TIM_OCFAST_DISABLE;
  sConfigOC.OCIdleState = TIM_OCIDLESTATE_RESET;
  sConfigOC.OCNIdleState = TIM_OCNIDLESTATE_RESET;
  if (HAL_TIM_PWM_ConfigChannel(&htim1, &sConfigOC, TIM_CHANNEL_1) != HAL_OK)
  {
    Error_Handler();
  }
//  sConfigOC.Pulse = 3;
  if (HAL_TIM_PWM_ConfigChannel(&htim1, &sConfigOC, TIM_CHANNEL_2) != HAL_OK)
  {
    Error_Handler();
  }
//  sConfigOC.Pulse = 2;
  if (HAL_TIM_PWM_ConfigChannel(&htim1, &sConfigOC, TIM_CHANNEL_3) != HAL_OK)
  {
    Error_Handler();
  }
  if (HAL_TIM_PWM_ConfigChannel(&htim1, &sConfigOC, TIM_CHANNEL_4) != HAL_OK)
  {
    Error_Handler();
  }
  sBreakDeadTimeConfig.OffStateRunMode = TIM_OSSR_DISABLE;
  sBreakDeadTimeConfig.OffStateIDLEMode = TIM_OSSI_DISABLE;
  sBreakDeadTimeConfig.LockLevel = TIM_LOCKLEVEL_OFF;
  sBreakDeadTimeConfig.DeadTime = 0;
  sBreakDeadTimeConfig.BreakState = TIM_BREAK_DISABLE;
  sBreakDeadTimeConfig.BreakPolarity = TIM_BREAKPOLARITY_HIGH;
  sBreakDeadTimeConfig.BreakFilter = 0;
  sBreakDeadTimeConfig.Break2State = TIM_BREAK2_DISABLE;
  sBreakDeadTimeConfig.Break2Polarity = TIM_BREAK2POLARITY_HIGH;
  sBreakDeadTimeConfig.Break2Filter = 0;
  sBreakDeadTimeConfig.AutomaticOutput = TIM_AUTOMATICOUTPUT_DISABLE;
  if (HAL_TIMEx_ConfigBreakDeadTime(&htim1, &sBreakDeadTimeConfig) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN TIM1_Init 2 */

  //使能更新中断
//  __HAL_TIM_ENABLE_IT(&htim1, TIM_IT_UPDATE);

  /* USER CODE END TIM1_Init 2 */
  HAL_TIM_MspPostInit(&htim1);

}
/* TIM2 init function */
void MX_TIM2_Init(void)
{

  /* USER CODE BEGIN TIM2_Init 0 */

  /* USER CODE END TIM2_Init 0 */

  TIM_ClockConfigTypeDef sClockSourceConfig = {0};
  TIM_SlaveConfigTypeDef sSlaveConfig = {0};
  TIM_MasterConfigTypeDef sMasterConfig = {0};
  TIM_IC_InitTypeDef sConfigIC = {0};

  /* USER CODE BEGIN TIM2_Init 1 */

  /* USER CODE END TIM2_Init 1 */
  htim2.Instance = TIM2;
  htim2.Init.Prescaler = 0;
  htim2.Init.CounterMode = TIM_COUNTERMODE_UP;
  htim2.Init.Period = 65535;
  htim2.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
  htim2.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_ENABLE;
  if (HAL_TIM_Base_Init(&htim2) != HAL_OK)
  {
    Error_Handler();
  }
  sClockSourceConfig.ClockSource = TIM_CLOCKSOURCE_INTERNAL;
  if (HAL_TIM_ConfigClockSource(&htim2, &sClockSourceConfig) != HAL_OK)
  {
    Error_Handler();
  }
  if (HAL_TIM_IC_Init(&htim2) != HAL_OK)
  {
    Error_Handler();
  }
  sSlaveConfig.SlaveMode = TIM_SLAVEMODE_RESET;
  sSlaveConfig.InputTrigger = TIM_TS_TI1FP1;
  sSlaveConfig.TriggerPolarity = TIM_INPUTCHANNELPOLARITY_RISING;
  sSlaveConfig.TriggerFilter = 0;
  if (HAL_TIM_SlaveConfigSynchro(&htim2, &sSlaveConfig) != HAL_OK)
  {
    Error_Handler();
  }
  sMasterConfig.MasterOutputTrigger = TIM_TRGO_RESET;
  sMasterConfig.MasterSlaveMode = TIM_MASTERSLAVEMODE_DISABLE;
  if (HAL_TIMEx_MasterConfigSynchronization(&htim2, &sMasterConfig) != HAL_OK)
  {
    Error_Handler();
  }
  sConfigIC.ICPolarity = TIM_INPUTCHANNELPOLARITY_RISING;
  sConfigIC.ICSelection = TIM_ICSELECTION_DIRECTTI;
  sConfigIC.ICPrescaler = TIM_ICPSC_DIV1;
  sConfigIC.ICFilter = 0;
  if (HAL_TIM_IC_ConfigChannel(&htim2, &sConfigIC, TIM_CHANNEL_1) != HAL_OK)
  {
    Error_Handler();
  }
  sConfigIC.ICPolarity = TIM_INPUTCHANNELPOLARITY_FALLING;
  sConfigIC.ICSelection = TIM_ICSELECTION_INDIRECTTI;
  if (HAL_TIM_IC_ConfigChannel(&htim2, &sConfigIC, TIM_CHANNEL_2) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN TIM2_Init 2 */

  /* USER CODE END TIM2_Init 2 */

}

/* TIM6 init function：周期=12个PWM脉冲总时间，仅中断1次 */
void MX_TIM6_Init(void)
{
  TIM_MasterConfigTypeDef sMasterConfig = {0};

  /* USER CODE BEGIN TIM6_Init 1 */
  // 关键配置依据：
  // TIM1单个PWM周期 = (399+1)/160e6 = 2.5μs
  // TIM6目标周期 = 12 × 2.5μs = 30μs
  // TIM6计数值 = 30μs × 160e6 = 4800 → Period = 4800 - 1 = 4799
  /* USER CODE END TIM6_Init 1 */
  htim6.Instance = TIM6;
  htim6.Init.Prescaler = 0;                  // 与TIM1一致，避免时钟偏差
  htim6.Init.CounterMode = TIM_COUNTERMODE_UP;// 向上计数
  htim6.Init.Period = 4799;                  // 核心：周期=30μs（12个PWM总时间）
  htim6.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_ENABLE; // 使能自动重装
  if (HAL_TIM_Base_Init(&htim6) != HAL_OK)
  {
    Error_Handler();
  }
  sMasterConfig.MasterOutputTrigger = TIM_TRGO_RESET; // 禁用触发输出（无需同步）
  sMasterConfig.MasterSlaveMode = TIM_MASTERSLAVEMODE_DISABLE;
  if (HAL_TIMEx_MasterConfigSynchronization(&htim6, &sMasterConfig) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN TIM6_Init 2 */
  __HAL_TIM_ENABLE_IT(&htim6, TIM_IT_UPDATE); // 使能TIM6更新中断（仅1次触发）
  /* USER CODE END TIM6_Init 2 */
}

void HAL_TIM_Base_MspInit(TIM_HandleTypeDef* tim_baseHandle)
{

  GPIO_InitTypeDef GPIO_InitStruct = {0};
  if(tim_baseHandle->Instance==TIM1)
  {
  /* USER CODE BEGIN TIM1_MspInit 0 */

  /* USER CODE END TIM1_MspInit 0 */
    /* TIM1 clock enable */
    __HAL_RCC_TIM1_CLK_ENABLE();

    /* TIM1 interrupt Init */
    HAL_NVIC_SetPriority(TIM1_UP_TIM16_IRQn, 1, 0);
    HAL_NVIC_EnableIRQ(TIM1_UP_TIM16_IRQn);
  /* USER CODE BEGIN TIM1_MspInit 1 */

  /* USER CODE END TIM1_MspInit 1 */
  }
  else if(tim_baseHandle->Instance==TIM2)
  {
  /* USER CODE BEGIN TIM2_MspInit 0 */

  /* USER CODE END TIM2_MspInit 0 */
    /* TIM2 clock enable */
    __HAL_RCC_TIM2_CLK_ENABLE();

    __HAL_RCC_GPIOA_CLK_ENABLE();
    /**TIM2 GPIO Configuration
    PA0     ------> TIM2_CH1
    */
    GPIO_InitStruct.Pin = GPIO_PIN_0;
    GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
    GPIO_InitStruct.Alternate = GPIO_AF1_TIM2;
    HAL_GPIO_Init(GPIOA, &GPIO_InitStruct);

    /* TIM2 interrupt Init */
    HAL_NVIC_SetPriority(TIM2_IRQn, 2, 0);
    HAL_NVIC_EnableIRQ(TIM2_IRQn);
  /* USER CODE BEGIN TIM2_MspInit 1 */

  /* USER CODE END TIM2_MspInit 1 */
  }
         else if(tim_baseHandle->Instance==TIM6)
  {
    // TIM6（APB1）时钟使能（与TIM2同源，时钟=160MHz）
    __HAL_RCC_TIM6_CLK_ENABLE();
    // TIM6中断优先级低于TIM2（确保捕获不被干扰）
    HAL_NVIC_SetPriority(TIM6_DAC_IRQn, 3, 0);
    HAL_NVIC_EnableIRQ(TIM6_DAC_IRQn);
  }
}

void HAL_TIM_MspPostInit(TIM_HandleTypeDef* timHandle)
{

  GPIO_InitTypeDef GPIO_InitStruct = {0};
  if(timHandle->Instance==TIM1)
  {
  /* USER CODE BEGIN TIM1_MspPostInit 0 */

  /* USER CODE END TIM1_MspPostInit 0 */

    __HAL_RCC_GPIOA_CLK_ENABLE();
    /**TIM1 GPIO Configuration
    PA8     ------> TIM1_CH1
    PA9     ------> TIM1_CH2
    PA10     ------> TIM1_CH3
    PA11     ------> TIM1_CH4
    */
    GPIO_InitStruct.Pin = GPIO_PIN_8|GPIO_PIN_9|GPIO_PIN_10|GPIO_PIN_11;
    GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
    GPIO_InitStruct.Alternate = GPIO_AF1_TIM1;
    HAL_GPIO_Init(GPIOA, &GPIO_InitStruct);

  /* USER CODE BEGIN TIM1_MspPostInit 1 */

  /* USER CODE END TIM1_MspPostInit 1 */
  }

}

void HAL_TIM_Base_MspDeInit(TIM_HandleTypeDef* tim_baseHandle)
{

  if(tim_baseHandle->Instance==TIM1)
  {
  /* USER CODE BEGIN TIM1_MspDeInit 0 */

  /* USER CODE END TIM1_MspDeInit 0 */
    /* Peripheral clock disable */
    __HAL_RCC_TIM1_CLK_DISABLE();

    /* TIM1 interrupt Deinit */
    HAL_NVIC_DisableIRQ(TIM1_UP_TIM16_IRQn);
  /* USER CODE BEGIN TIM1_MspDeInit 1 */

  /* USER CODE END TIM1_MspDeInit 1 */
  }
  else if(tim_baseHandle->Instance==TIM2)
  {
  /* USER CODE BEGIN TIM2_MspDeInit 0 */

  /* USER CODE END TIM2_MspDeInit 0 */
    /* Peripheral clock disable */
    __HAL_RCC_TIM2_CLK_DISABLE();

    /**TIM2 GPIO Configuration
    PA0     ------> TIM2_CH1
    */
    HAL_GPIO_DeInit(GPIOA, GPIO_PIN_0);

    /* TIM2 interrupt Deinit */
    HAL_NVIC_DisableIRQ(TIM2_IRQn);
  /* USER CODE BEGIN TIM2_MspDeInit 1 */

  /* USER CODE END TIM2_MspDeInit 1 */
  }
}

/* USER CODE BEGIN 1 */
void HAL_TIM_IC_CaptureCallback(TIM_HandleTypeDef *htim)
{
    if (htim->Channel == HAL_TIM_ACTIVE_CHANNEL_1)
    {
      /* 获取输入捕获值 */
      IC1Value = HAL_TIM_ReadCapturedValue(&htim2,TIM_CHANNEL_1);
      IC2Value = HAL_TIM_ReadCapturedValue(&htim2,TIM_CHANNEL_2);

      if (IC1Value != 0)
      {
                                /* 占空比计算：(高电平时间/周期)×100%
                                        注：+1是因为计数器从0开始计数（实际周期为计数值+1个时钟周期） */
                                DutyCycle = (float)(IC2Value + 1) / (IC1Value + 1) * 100;

                                /* 频率计算：定时器时钟频率 / 周期计数值
                                         配置中Prescaler=0，假设TIM2时钟为160MHz（需根据实际系统时钟调整） */
                                // 定时器时钟频率 = 系统时钟相关配置（例如APB1=80MHz时，TIM2时钟=160MHz）
                                Frequency = 80000000.0f / (IC1Value + 1);  // 单位：Hz

      }
      else
      {
      DutyCycle = 0;
      Frequency = 0;
      }

    }
}


/**
  * @brief  打印输入捕获的相关信息（周期、高电平时间、占空比、频率）
  * @param  None
  * @retval None
  */
void Print_IC_Info(void)
{
//    HAL_Delay(5000);  // 延迟5秒
    // 打印捕获值
    printf("IC1Value = %d  IC2Value = %d ", IC1Value, IC2Value);
    // 打印占空比和频率
    printf("duty cycle=%0.2f%%   frequency=%0.2fHz\n", DutyCycle, Frequency);
}

/**
  * @brief  所有通道输出12个PWM脉冲（TIM6一次中断即完成）
  * @retval None
  */
void Send12Pulses(void)
{
  // 若正在发送，先停止（避免重复触发）
  if (pulse_sending)
  {
    HAL_TIM_PWM_Stop(&htim1, TIM_CHANNEL_1);
    HAL_TIM_PWM_Stop(&htim1, TIM_CHANNEL_2);
    HAL_TIM_PWM_Stop(&htim1, TIM_CHANNEL_3);
    HAL_TIM_PWM_Stop(&htim1, TIM_CHANNEL_4);
    HAL_TIM_Base_Stop_IT(&htim6);
    pulse_sending = 0;
  }

  // 标记为发送中
  pulse_sending = 1;

  // 修复第一个脉冲异常：CNT设为TIM1周期值，确保初始输出低电平
  TIM1->CNT = htim1.Init.Period;

  // 启动TIM6（仅1次中断，对应12个脉冲总时间）
  HAL_TIM_Base_Start_IT(&htim6);

  // 启动所有通道PWM输出
  HAL_TIM_PWM_Start(&htim1, TIM_CHANNEL_1);
  HAL_TIM_PWM_Start(&htim1, TIM_CHANNEL_2);
  HAL_TIM_PWM_Start(&htim1, TIM_CHANNEL_3);
  HAL_TIM_PWM_Stop(&htim1, TIM_CHANNEL_4); // 按需开启/关闭通道
}

/**
  * @brief  单通道输出12个PWM脉冲（TIM6一次中断即完成）
  * @param  channel：目标通道（TIM_CHANNEL_1~4）
  * @retval None
  */
void Send12Pulses_SingleCh(uint32_t channel)
{
  // 停止当前发送（避免冲突）
  if (pulse_sending)
  {
    // 停止所有PWM通道
    for (uint32_t ch = TIM_CHANNEL_1; ch <= TIM_CHANNEL_4; ch++)
    {
      HAL_TIM_PWM_Stop(&htim1, ch);
    }
    HAL_TIM_Base_Stop_IT(&htim6);
    pulse_sending = 0;
  }

  // 标记发送状态
  pulse_sending = 1;

  // 修复第一个脉冲异常
  TIM1->CNT = htim1.Init.Period;

  // 启动TIM6（1次中断=12个脉冲总时间）
  HAL_TIM_Base_Start_IT(&htim6);

  // 仅启动目标通道PWM
  HAL_TIM_PWM_Start(&htim1, channel);
}

/**
  * @brief  定时器更新中断回调（仅处理TIM6，1次中断=12个脉冲）
  * @param  htim：定时器句柄
  * @retval None
  */
void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef *htim)
{
  // 仅响应TIM6的中断（1次中断对应12个脉冲总时间）
  if (htim->Instance == TIM6 && pulse_sending)
  {
          TIM1->CNT = htim1.Init.Period;

    // 1. 停止所有TIM1 PWM通道
    HAL_TIM_PWM_Stop(&htim1, TIM_CHANNEL_1);
    HAL_TIM_PWM_Stop(&htim1, TIM_CHANNEL_2);
    HAL_TIM_PWM_Stop(&htim1, TIM_CHANNEL_3);
    HAL_TIM_PWM_Stop(&htim1, TIM_CHANNEL_4);

    // 2. 停止TIM6（避免重复中断）
    HAL_TIM_Base_Stop_IT(&htim6);

    // 3. 重置发送状态（方便下次调用）
    pulse_sending = 0;

    // （可选）添加发送完成后的回调逻辑（如置位标志、通知其他模块）
    // User_Callback_PulseSentComplete();
  }
}

/* USER CODE END 1 */

勇往直前的勇士

只发送一次  Send12Pulses_SingleCh(TIM_CHANNEL_1);
波形和输入捕获都没有问题

eric2013

勇往直前的勇士 发表于 2025-10-10 17:36
只发送一次  Send12Pulses_SingleCh(TIM_CHANNEL_1);
波形和输入捕获都没有问题

改进下，使用DeInit函数做个复位，然后重新初始化试试正常不，
